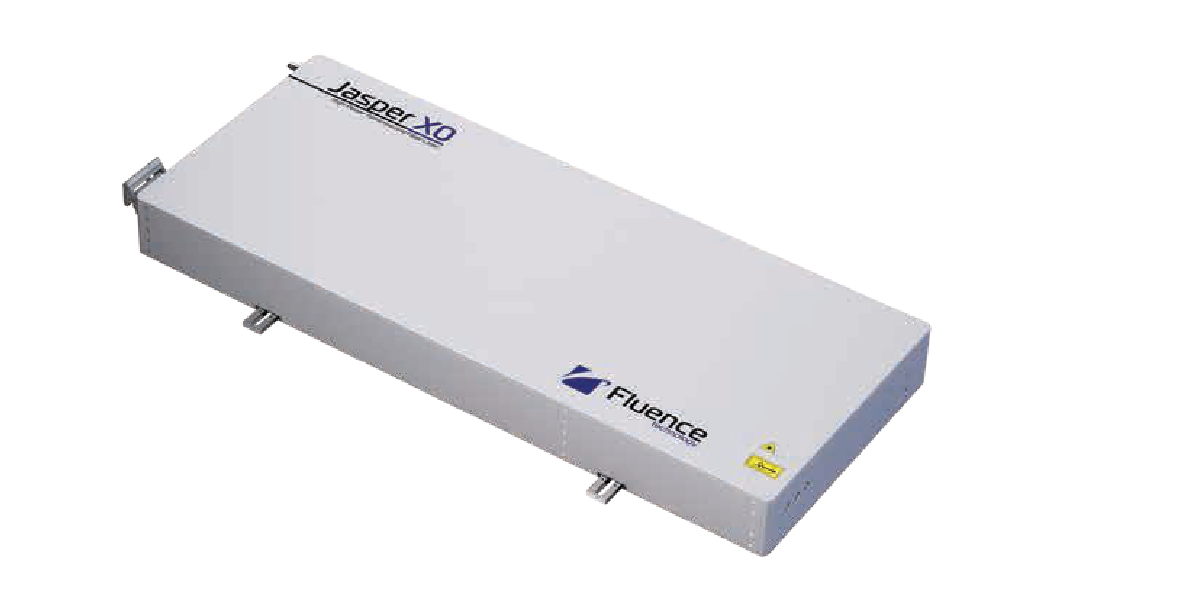

Jasper X0 – High Power Femtosecond Fiber Laser

#

Femtosecond fiber lasers, superior lifetime and performance

Jasper X0 is a 1030 nm high-power femtosecond laser, delivering pulses with energy up to 200 μJ and 60 W of average power. With a truly monolithic all-fiber amplified oscillator inside this laser provides fast warm-up time. Furthermore, you can count on unprecedented long-term stability and hands-free operation. The heart of the system is our unique truly all-fiber oscillator. Thanks to its unique construction and SESAM-free technology Jasper is amazingly robust and reliable. Additionally, the fiber amplifiers ensure unbeatable beam pointing stability even in a harsh environment – unlike the free-space constructions.

Key Features

Maximum average power @ 1030 nm ±5 nm 10, 20, 30 and 60 W
Maximum pulse energy 50 μJ, 100 μJ, 200 μJ
Base repetition rate 20 ± 2MHz
Pulse duration <270 fs FWHM (<250 fs typical)
Pulse duration tuning <270 fs – 8 ps
Optional wavelength outputs with Harmonic Generation Module (HGM): 515 nm, 343, 258 nm (upon reguest)
Beam quality M² <1.2 (1.1 typical)
Dimensions 1096 (L) x 446 (W) x 100 mm3
